The Things Indoor Gateway Pro: A Feature-Rich LoRaWAN Gateway with ESP32 and Semtech SX1302

The Things Industries first introduced the Things Indoor Gateway in 2019, offering an affordable, multi-channel LoRaWAN gateway designed for IoT networks. Priced around $111, it provided a more reliable solution compared to lower-cost, single-channel gateways like the Dragino OLG01, which often struggled with connectivity issues in shared environments.

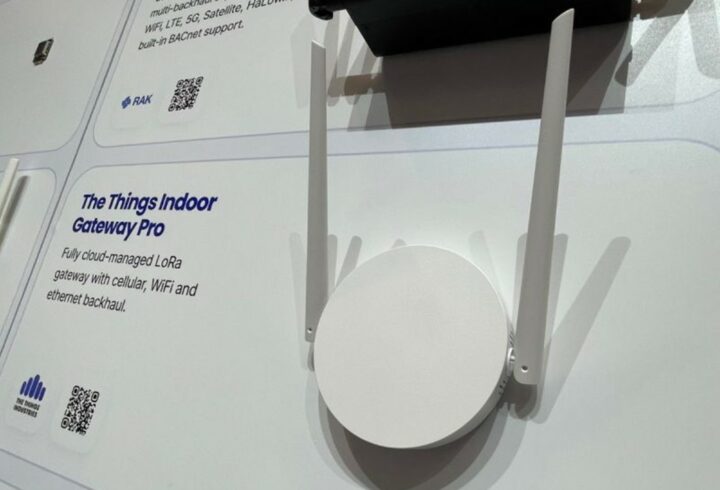

Now, The Things Industries has launched the Things Indoor Gateway Pro, a next-generation, managed LoRaWAN gateway designed for seamless IoT network deployment. This advanced model offers zero-touch provisioning, full cloud management, and flexible connectivity options, making it ideal for large-scale IoT implementations.

Credits: CNX Software

Things Indoor Gateway Pro : Key Features

Zero-Touch Provisioning: Simplifies installation and reduces setup time.
Full Cloud Management: Offers remote monitoring and control for efficient network management.
Flexible Connectivity: Includes LTE, Ethernet, and Wi-Fi with automated failover.
Advanced Security: Features mTLS, secure boot, and FOTA (Firmware Over-The-Air) updates to ensure secure and reliable communication.

Technical Specifications:
Processor: SoC: Espressif Systems ESP32 with dual-core Xtensa LX7 microcontroller (up to 240MHz).

Networking:

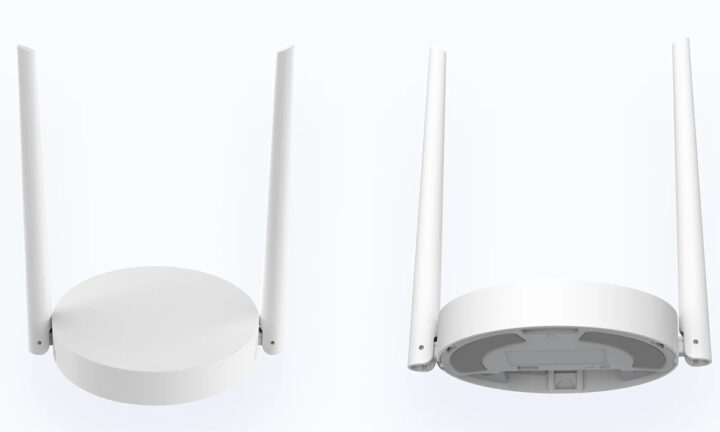

Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz) with automated failover and PCB antenna.
LoRaWAN via Semtech SX1302 chipset.
Supports 868 MHz (EU) and 915 MHz (US) frequency bands.
8 channels (half-duplex).Sensitivity: -140 dBm at SF12. Output power: Up to 27 dBm.External antenna connector.Ethernet: 1x RJ45 WAN port (10/100 Base-T), Auto MDI/MDIX, supporting full/half duplex mode.
Cellular:
Micro SIM-3FF slot.
4G LTE (Cat 1 bis) / GSM modem with external antenna.

USB and Miscellaneous:

USB Port: 1x USB 2.0 Type-C for power supply and console.

Additional Features:
Reset button.
LED indicators for controller and The Things Stack.

Power Options:
5V via USB Type-C port
5–12V DC via 3.5mm 2-pin Terminal Block

Credits: CNX Software

Integration with The Things Stack:

The Things Indoor Gateway Pro seamlessly integrates with The Things Stack, The Things Industries’ platform for managing LoRaWAN networks. It supports real-time monitoring, alerts, detailed analytics, and advanced device management tools such as:
mTLS: Ensures secure communication.
FOTA: Provides firmware updates over the air.
Remote Reboot: Allows devices to be rebooted remotely.
Spectral Scanning: Detects signal interference.
Smart Filtering: Optimizes network traffic.

Credits: CNX Software

Setup and Availability:
Detailed setup guides for mounting, Wi-Fi settings, LED status indicators, and more are available on the company’s documentation page.
The Things Indoor Gateway Pro is available for purchase on The Things Shop.For pricing and subscription plans , please see below:

• European Frequency Band: €130 with a subscription of €5/month or €50/year.
• North American Frequency Band: $150 with a subscription of $6/month or $50/year.

For more information, visit the Indoor Gateway Pro product page.
